Product Details

Description

Qasa 30watts 12V Mono Multipurpose Solar Panel QSP-30W18（Recommended to use with SPP-220/330） This unique Solar Combo is best for Families who want to cut down on their electricity bills and enjoy an uninterrupted power supply or as a backup in areas with appreciable power supply from the grid. You can always be certain of a constant power supply after a stressful day at work and be sure of having good relaxation upon arrival from work. Have your Rechargeable fans powered up with this classy easy-to-install, easy-to-manage Qasa mono solar panel. Ideal for areas where there is minimal minimal public power. Also for all Fans requiring 12v DC power. Features of the products

The ideal solar panel for those powered by DC 12V

5m cable, ∅0.75m㎡ copper wires

 Specification

Solar cells: Mono

Max power: 30W

Max power volatge[Vmp]: 18V

Max power current[lmp]: 1.66A

Open circuit volatge(Voc]: 21.6V

Short circuit current[lsc]: 1.8A

Maximum tempereture: .40℃ to -85℃

Frame[Aluminum frame]: 17mm

Laminate: EVA

Product size: 645*350*17mm

Install line size:2x0.5m㎡ x 5m A=B=6mm Copper wires

Weight: 2.6kg

Connector: 5.5DC

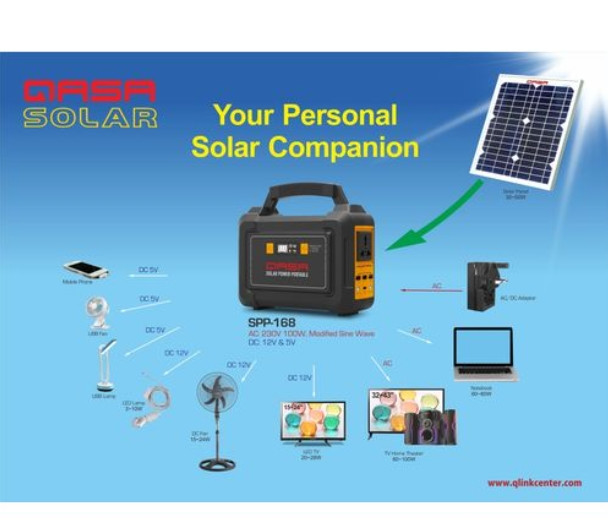

We recommended to use it with Qasa Solar Power Portable SPP-168 Adc / 220 / 330for the best experience.

Key Features

30watts SOLAR PANEL

All Fans and gadgets needing 12v DC power

High efficiency

High-quality toughened glass with high light transmittance

Unique technology makes the component beautiful, strong , resistance to wind.

Unique technology to avoid water accumulation freezing in the framework and deformation

Small, but innovative and powerful

What’s in the box

QSP-30W18 *1

Specifications

SKU: QA791GP418EJENAFAMZ

Product Line: QASA

Model: QSP-30W18

Production Country: China

Size (L x W x H cm): 64.5 x 35 x 1.7

Weight (kg): 2.6

Color: Black

Main Material: Plastic

Type: Inverter
